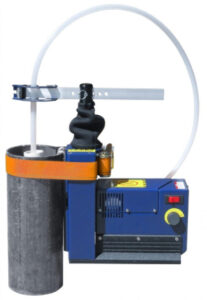

Waterra Power Pack PP1
Overview

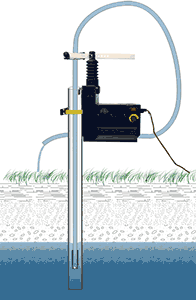

The Waterra PowerPack-PP1 provides the mechanical actuation for pumping with inertial pumps (footvalve system) to depths of up to 45m, in a fully portable, single operator power unit. Weighing just 13 kg, the PowerPack-PP1 provides outstanding pumping performance.
The PP1 incorporates tubing clamps for use with various tubing sizes, which then connect to a corresponding footvalve. A Honda GX-25 series, 0.25 horsepower, 4 stroke, gasoline motor powers this device,which can run for approximately 1 hour without refuelling.
Features & Benefits
- Portable & lightweight
- No electronic parts down well
- Easy to clean & maintain
- Adjustable tubing clamps
- Includes backpack frame for portability
- Adapts to almost any size well casing
- Reduces fatigue when purging large volumes from the well
Applications
- Well development in silty wells
- High purge sampling
- Stygofauna sampling
Technical Specifications
| Product Specifications | Description |
|---|---|
| Measurements (H x W x D) | 568 x 365 x 39mm |
| Weight | 13 kg |
| Engine | Honda GX series, ultra small 4-stroke |
| Fuel | Unleaded, 0.45 litre capacity |
| Running Time | Up to 1 hour per tank of fuel |
| Tubing Clamps | For Standard and High Flow Waterra tubing (adaptors available for smaller tubes) |
Recommended Accessories
At ECO we stock a large range of parts and accessories to suit most sampling pumps on the market. This includes Tubing, and pump accessories such as the Waterra Foot valves
Downloads
- Waterra Powerpack: Product Brochure (106 KB)
