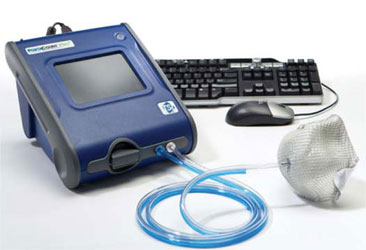

PortaCount Pro+ 8048
Overview
The only commercially available instrument in the world that can quantitatively fit test all tight-fitting respirator face masks, including all N95, P1 and P2 filtering face piece respirators.
Accept no substitutes, choose the original ambient aerosol condensation nuclei counter (CNC) quantitative fit testing instrument, the PortaCount Respirator Fit Tester using N95-Companion™ technology.
Features & Benefits
- OSHA, CSA, HSE, and ANSI Compliant for ALL tight-fitting respirators, including Series 95, 99, 100, FFP1, FFP2, and FFP3 filtering facepiece respirators
- Measures fit factors greater than 10,000
- Computes respirator fit factor using microscopic particles in ambient air
- Automates fit testing with FitPro Ultra Software
- Real-Time FitCheck Mode™ to train new users and troubleshoot failed fit tests
- Mask sampling adapter kits enable fit testing in employee’s personal respirators
- Software prints fit test cards with fit test report or on ID cards
Software
- New FitPro Ultra fit test software improves efficiency and simplifies fit testing
- New advanced user interface with an intuitive design supporting
one-step-to-a-fit test - Wireless WiFi communication to leverage the utility of a laptop or tablet
- Industry-first active animations guide the test subject through the fit test exercises to ensure greater compliance
- Interactive troubleshooting guide
Downloads
- PortaCount Pro+: Product Brochure (594 KB)
Technical Specifications
| Product Specifications | Description |
|---|---|
| Fit Factor Range | 1 to greater than 10,000, 1 to 200 for N95 masks |
| Typical Fit Factor Accuracy | ±10% of reading |
| Respirator Facepieces that can be Fit Tested | Full-face elastomeric Half-face elastomeric NIOSH series-100 filtering-facepiece NIOSH series-99 filtering-facepiece NIOSH series-95 filtering-facepiece |
| Fit Factor Measurement | Direct measurement of fit factor (Cout/Cin) |
| Dimensions | 6.75 in. x 8.5 in. x 9.5 in. (17 cm x 22 cm x 24 cm) |
| Weight | Unit Only: 6.8 lb (3.1 kg) With Standard Accessories and Case: 18 lb. (8.2 kg) |
| Power | Autosensing 100 to 250 VAC, 50 to 60 Hz |
| Flow Rate | Sample: 350 cm3/min Total: 1000 cm3/min (nominal) |
| Temperature Range | Operation: 32 to 100°F (0 to 35°C) Storage: -40 to 160°F (-40 to 70°C) |
| Alcohol | Hours Per Charge: 6 hours at 70°F (21°C) Alcohol Type: 99.5%+ reagent grade isopropyl |
| Carrying Case | Dimensions (HWD): (23 cm x 36 cm x 53 cm) |
| Pass/Fail Setting | User-selectable: 0 to 10,000 |
| Factory Recalibration Interval | One year |
| Warranty | Two years on workmanship and materials |
| Minimum PC Hardware Requirements for FITPRO Fit Test Software | Microsoft® Windows® XP and Windows Vista® software |
| Optional Accessories | Model 8901 Fit Test card printer Mask Sampling Adapters for select respirator models |
