EarthSense Zephyr
Overview
Partnering with UK firm EarthSense, ECO is pleased to be able to provide the Zephyr, a new way of delivering outstanding air quality monitoring.
The Zephyr is a robust and award-winning urban air quality monitor suitable to a wide range of monitoring applications.
Measuring PM1.0, PM2.5 and PM10 the Zephyr can be used as a stand-alone monitor for applications such as civil works dust monitoring or can be networked for urban air quality applications. ECO and EarthSense are experienced in delivering turnkey air quality projects.
The fully integrated design of the Zephyr allows increased flexibility and a smaller footprint compared to traditional monitors with high power usage.
The Zephyr utilises a cartridge configuration that can host multiple sensors in a single cartridge. Cartridges are pre-calibrated and can be swapped out in the field, significantly reducing service and downtime. Cartridges are generally replaced every 24 months with a new, calibrated cartridge.
The cartridge system also allows for extensive in-field diagnostics and maintenance.

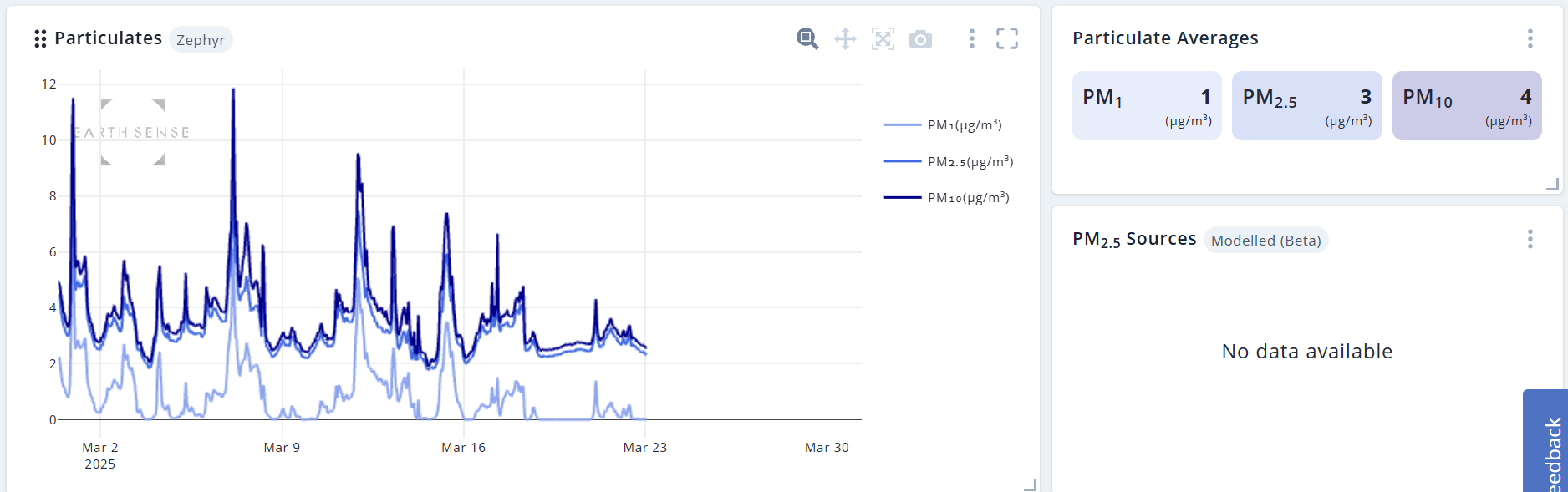

Data is assured to very high levels of accuracy. Data is available on any connected device via the MyAir platform which also enables users to manage their own data and utilise the data to provide enhanced environmental impacts.
Features & Benefits
- Measures PM1.0, PM2.5 and PM10 as standard – optional gas sensors also available
- Internal logging and 4G remote data access
- Aluminium and polycarbonate housing for greater operating temp range
- Can incorporate weather sensors as well as be integrated with ECO’s other monitoring solutions
- Pre calibrated cartridges to reduce service and maintenance downtime
Applications
- Fenceline dust monitoring
- Land development sites
- Urban roadside emission monitoring
- City-wide pollution monitoring
Downloads
- Zephyr Spec Sheet (851 KB)
Technical Specifications
| Product Specifications | Description |
|---|---|
| Size | 235mm (h) x 160mm (w) x 114mm (d) |
| Weight | 1750g - 2000g (dependent on cartridge) |
| Operating Parameters | Operating Range: -20°C to +45°C ambient. Relative Humidity range: 15 - 85% continuous* *prolonged exposure outside of this range may irreparably damage the gas sensors |
| Construction | Extruded aluminium body, hard anodised with ASA-PC end mouldings. Stainless steel mounting brackets for 80-140mm diameter poles. |
| Warranty | Full warranty on manufacturer faults |
